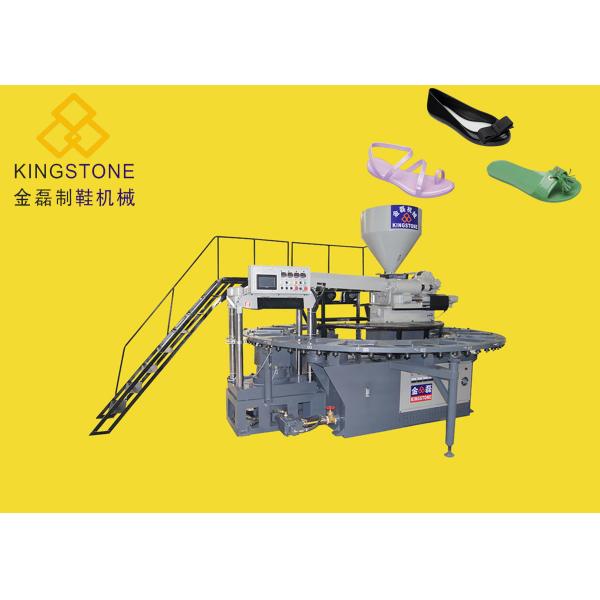

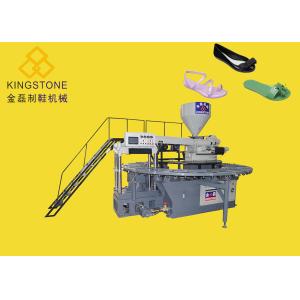

Rotary Plastic Shoes Making Machine For PVC Jelly Shoes short boots
sandals slippers
How to make sandals?
Please confirm the shoes you want to produce and send to us, we
will provide some ideas for it.
Please do not hesitate to send inquiry to us.
| Specifications |
| Machine model | JL-128 |
| Mould-clamping Unit |
| Work station | | 12,16,20 |
| Clamping force | TON | 120-150 |
| Opening stroke | MM | 210 |
| Mould dimension | MM | 600*280 |
| Height of injection nozzle | MM | 280 |
| Injection Unit |
| Injector | SET | 1 |
| Screw diameter | MM | 65/70/75 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 650-1000 |
| Injection speed | Cm/s | 10 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | Normal | Servo |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 20 Stations |
| Machine dimension | (L*W*H)MM | 4600*3700*2500 |
| Machine weight | KGS | 6500 |
| *Note:Above data only for reference. |
Features:
1. This machine can produce the sandals, jelly shoes with pvc
material.
2. It can make the beautiful shoes, durable.
3. We will make the machine as your requirements and your country
voltage, to ensure the good working in your country.
4. The adopted movable ejection unit controlled by oil pressure
makes it easier to clear away the material.
5. Pressure switch assures the locking strength by mold lock system
for far better product.
6. The machine has manual operate and automatic operate, convenient
for working.
Packing
Can pack with film, wooden box, carton box as your requirements.
Shipping
By Sea, railway, we will arrange the better shipping way for you.
Or you can arrange it by yourself.

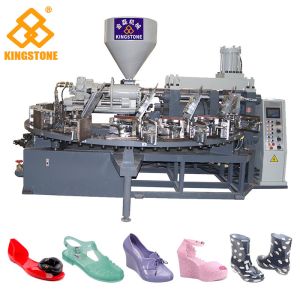

Machine Details:
A photo in our factory for your reference:
Finished products:
Delivery:
King Customer, Stone Quality!
We are in Dongguan, Welcome to visit our factory!
